Clean furniture spray booth

Product overview

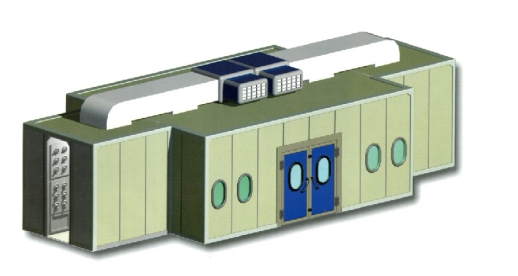

The whole spray booth is of assembled structure. The room is made of plug-in heat preseryatiorsandwich color steel plate with good sealing and thermal insulation performance. The room is equipped with working door to facilitate the staff to enter and exit the door is covered with iron plate, and the observation window is installed in the center of the door to observe the dynamic situation of the room at any time. Select low noise and high air volume fan to ensure the perfection of painting eflect. When painting.After coarse and medium efficiency filtration, the external air issent to the alr pressure distribution layer by the fan, and then enters the spray room after being purified by high-efficiency fltratlon at the top. The alr in the room is fully lowered and moves downward at a speed of 0.2 to 0.3m/s so that the spray particles after spraying can not stay in the air, and is directly discharged through the bottom outlet.There is a certain air pressure in the upper spraying room, and the external dust can not enter the spray room, In this way, the alr cleanliness can reachmore than 98%, and the alr is sent into the spray roomThe air has a certain pressure, can form aconstant air flow around the workpiece lo remove excessive paint, to maximize the qualityof spray painting.
